| List price (US) * |
• Body only: $799
• Kit: $899 (with 18-55 mm lens) |
| International naming |
• US: Canon Rebel Digital XTi
• Japan: Canon EOS Kiss Digital X
• Elsewhere: Canon EOS 400D |
| Body material |
Plastic (Stainless Steel chassis) |
| Sensor * |
• 10.1 million effective pixels
• 10.5 million total pixels
• 22.2 x 14.8 mm CMOS sensor
• RGB Color Filter Array
• Built-in low-pass filter
• 3:2 aspect ratio |
| Dust reduction * |
• Low-pass filter vibration at power-on (can be
interrupted)
• Anti-static coating on sensor surfaces
• Software based dust-removal (camera maps dust, removed
later) |
| Image sizes *
|
• 3888 x 2592 (L)
• 2816 x 1880 (M)
• 1936 x 1288 (S)
|
| Output formats |
• RAW (.CR2)
• RAW (.CR2) + JPEG Large/Fine
• JPEG (EXIF 2.21) - Fine, Normal |
| Image processor |
DIGIC II |
| Lenses |
• Canon EF / EF-S lens mount
• 1.6x field of view crop |
| Focus modes |
• Auto Focus
• Manual Focus (switch on lens) |
| Auto Focus |
• 9-point CMOS sensor
*
• AF working range: -0.5 to 18 EV (at 23°C, ISO 100)
* |
| AF modes |
• AI Focus
• One shot
• AI Servo |
| AF point selection |
• Auto
• Manual |
| AF assist |
Flash strobe |
| Shooting modes |
• Auto
• Program AE (P)
• Shutter priority AE (Tv)
• Aperture priority AE (Av)
• Manual (M)
• Auto depth-of-field
• Portrait
• Landscape
• Close-up
• Sports
• Night portrait
• Flash off |
| Metering |
• TTL 35-zone SPC
• Metering range: EV 1.0 - 20 EV (at 23°C, ISO 100, 50
mm F1.4) |
| Metering modes |
• Evaluative 35-zone
• Partial 9% at center
• Center-weighted average |
| AE Lock |
AE lock button |
| AE Bracketing |
• +/- 2.0 EV
• 0.5 or 0.3 EV increments |
| Exposure compen. |
• +/- 2.0 EV
• 0.5 or 0.3 EV increments |
| Sensitivity |
• Auto (100 - 400)
• ISO 100
• ISO 200
• ISO 400
• ISO 800
• ISO 1600 |
| Shutter |
• Focal-plane shutter
• 30 - 1/4000 sec (0.5 or 0.3 EV steps)
• Flash X-Sync: 1/200 sec
• Bulb |
| Aperture values |
• F1.0 - F91 (0.3 EV steps)
• Actual aperture range depends on lens used |
| White balance |
• Auto
• Daylight
• Shade
• Cloudy
• Tungsten
• Fluorescent
• Flash
• Custom |
| WB Bracketing |
• +/-3 levels
• 3 images
• Selectable Blue/Amber or Magenta/Green bias
* |
| WB fine-tuning |
• Blue (-9) To Amber (+9)
• Magenta (-9) to Green (+9) |
| Color space |
• sRGB
• Adobe RGB |
| Picture style * |
• Standard
• Portrait
• Landscape
• Neutral
• Faithful
• Monochrome
• User 1
• User 2
• User 3 |
| Custom image parameters * |
• Sharpness: 0 to 7
• Contrast: -4 to +4
• Saturation: -4 to +4
• Color tone: -4 to +4
• B&W filter: N, Ye, Or, R, G
• B&W tone: N, S, B, P, G |
| Drive modes |
• Single
• Continuous: 3.0 fps up to 27 JPEG / 10 RAW frames
*
• Self-timer 10 secs (3 sec with mirror lock-up)
|
| Mirror lockup |
Yes (custom function) |
| Viewfinder |
• Pentamirror
• 95% frame coverage
• Magnification: 0.8x (-1 diopter with 50 mm lens at
infinity)
• Eyepoint: 21 mm
• Dioptric adjustment: -3.0 to +1.0 diopter
• Fixed laser matte screen
• Proximity sensor disables LCD shooting mode
information * |
| Viewfinder info |
• AF points
• AF/FE lock
• AEB
• Shutter Speed
• Aperture
• Exposure Level / Compensation
• Max. burst
• AF/MF focus confirmation
• CF warning |
| DOF preview |
Yes, button |

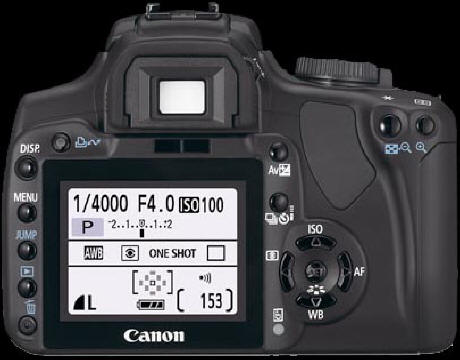

| LCD monitor * |
• 2.5" TFT LCD
• 230,000 pixels
• Wide viewing angle
• 7 brightness levels
• Up to 10x zoom playback |
| LCD shooting mode information |
• Shutter speed
• Aperture
• Sensitivity (ISO)
• Exposure mode
• Meter / Exposure compenation
• Bracketing
• Flash compensation
• White balance & fine tuning
• Metering mode
• Custom function set
• Auto focus mode
• Drive mode
• Auto focus areas
• Black & white mode
• Beep
• Red-eye reduction
• Image size / quality
• Battery status
• Frames remaining |
| Record review |
• Uses last play mode
*
• Magnification possible *
• 2 / 4 / 8 sec / Hold |
| Flash |
• Auto pop-up E-TTL II auto flash
• Guide number approx 13
• Modes: Auto, Manual Flash On/ Off, Red-Eye Reduction
• X-Sync: 1/200 sec
• Flash exposure compensation: +/-2.0 EV (0.3 or 0.5 EV
steps)
• Coverage up to 17 mm focal length (27 mm FOV equiv.)
|
| External flash |
• E-TTL II auto flash with EX-series
Speedlites
• Hot-shoe
|
| Other features |
• Orientation sensor
• Automatically writes FAT16/FAT32 depending on capacity |
| Auto rotation |
• On (playback uses orientation data in
file header)
• Off |
| Playback mode |
• Single image
• Single image with info (histogram brightness / RGB
*)
• Magnified view (1.5 - 10x in 15 steps, browsable)
• 9 image index
• Auto play
• Image rotation
• Jump (by 10, 100 or date) |
| Custom functions |
11 custom functions with 29 settings
*
|
| Menu languages |
• English
• German
• French
• Dutch
• Danish
• Finnish
• Italian
• Norwegian
• Swedish
• Spanish
• Russian
• Simplified Chinese
• Tradional Chinese *
• Korean
• Japanese |
| Firmware |
User upgradable |
| Connectivity |
• USB 2.0 (Hi-Speed)
• Video out
• E3 type wired remote control |
| Storage |
• Compact Flash Type I or II
• Microdrive supported
• FAT 12/16 and FAT 32 support
• No CF card supplied
• Up to 9999 images per folder * |
| Power |
• Lithium-Ion NB-2LH rechargeable
battery (supplied & charger)
• CR2016 Lithium battery (date/time backup)
• Optional ACK-700 AC adapter |
| Direct printing |
• Canon Selphy Printers
• Canon Bubble Jet Printers with direct print function
• Canon PIXMA Printers supporting PictBridge
• PictBridge
|
| Dimensions * |
127 x 94 x 65 mm (5.0 x 3.7 x 2.5 in)
|
| Weight * |
• Body (no battery): 514 g (1.1 lb)
• Body (inc battery): 556 g (1.2 lb) |
| Software * |
• Zoom Browser EX / ImageBrowser
• PhotoStitch
• EOS Utility (inc. Remote Capture; Windows & Mac except
Mac Intel)
• Digital Photo Professional (Windows / Mac) |
